XHDD503C Digital underground cable fault pinpointer for Precise and Accurate Fault Detection

Introduction

To accurately locate power cable fault points, the cable fault location instrument uses the acoustic and magnetic synchronization method. The electronic flashover, generated by the impact discharge generator, is detected and amplified by a specialized probe. The precise location of the fault is determined through auditory and visual judgment. This device completes the precise positioning of cable faults within a rough measurement range and collects the time difference between acoustic and magnetic signals. It integrates advanced positioning technology with path-assisted testing, offering multiple test modes and a variety of informative prompts to efficiently and accurately locate cable faults.

Features

1. 5-inch touch-high brightness LCD ensures visibility under sunlight.
2. Adopt acoustic and magnetic synchronous positioning technology to automatically calculate the acoustic and magnetic time difference.can be manually adjusted to adapt to various environments.
3. It has background noise reduction technology and can choose from a variety of filtering methods. It has path deviation indication.
4. Equipped with multi-layer physical isolation signal sensors, waterproof grade IP65. Built-in large-capacity lithium battery, long standby time, equipped with fast charger.
5. Small and lightweight, easy to operate, and simple human-machine interface.

Technical indicators

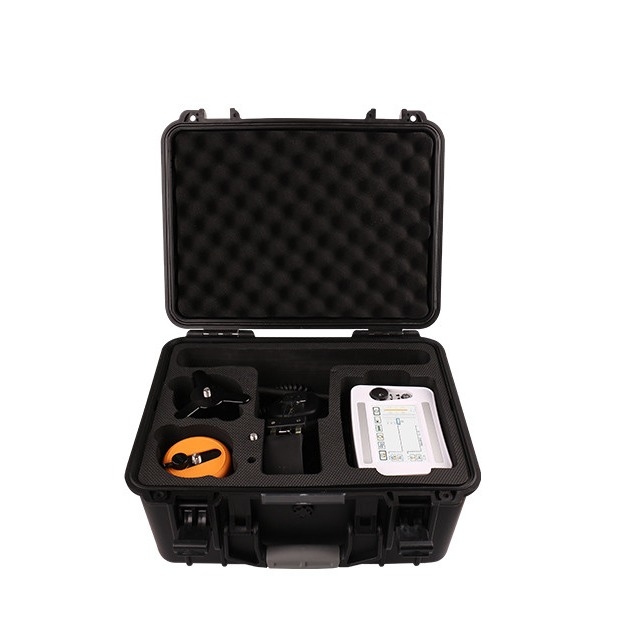

Packing list
